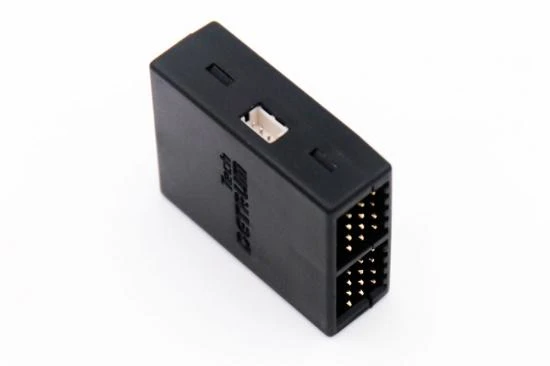

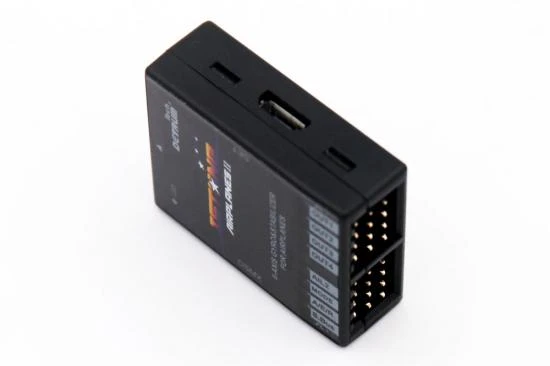

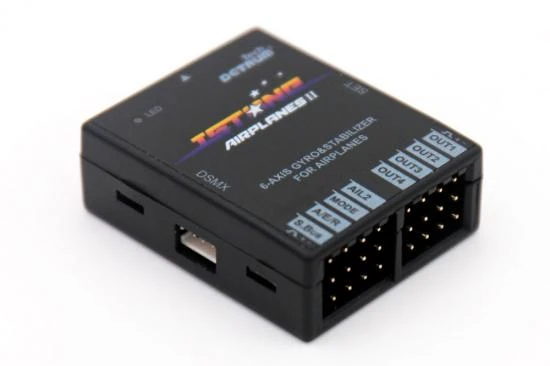

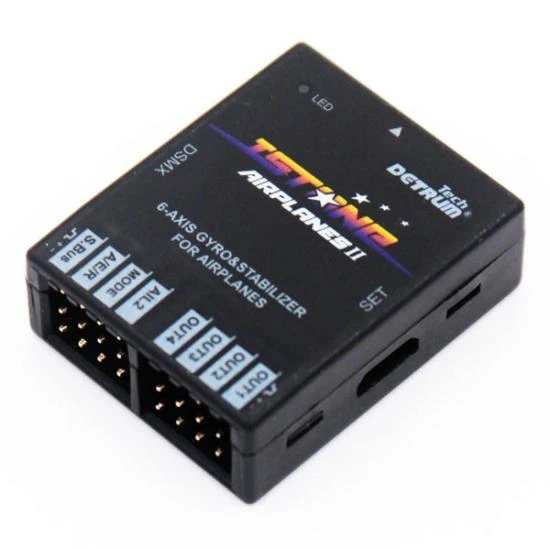

DYNAM DETRUM ISTONE 6-AXIS AIRCRAFT STABILIZER DSM&S-BUS

ISTONE-All V2 is the 6-axis gyro & stabilizer that special for airplane including normal wing, delta wing and V-tail airplane. It is used to connect with the receiver to control the flight; ISTONE-All V2 stabilizer supports three flight modes. Normal mode can greatly improve the stability of flight. Safe mode, it means pilot will achieve one-click rescue easily. In Aerobatic modes, it can lock the airplane to its previous attitude which accomplishes the users’ aerobatic flight.

For connecting with the DSM receiver, ISTONE-All V2 adds two output channels based on the previous version. It can implement more functions such as controlling the landing gear, flap and so on, rather than just controlling aileron, elevator, rudder and throttle.

Toggle the mode switch on transmitter to make the accelerometer calibration. This original calibration method that ISTONE-All V2 adapted is more convenient than connecting the computer or restarting the stabilizer.

ISTONE-All V2 is compatible with nearly all transmitters in the market such as Specktrum, Futaba, Detrum GAVIN and etc. It also supports DSM, S.BUS and PWM receivers. Users can set the programmable items via a 3-in-1 program card for more convenience in operation.

Optimized the algorithm in flight control on the basis of previous version brings better experience for users and more flexible control in flight.

Dynam Detrum Istone-All V2 Stabilizer Features:

• There are 6 output channels for controlling aileron, elevator, throttle, rudder, even more landing gear and flap.
• Toggle the mode switch on transmitter quickly to calibrate the accelerometer. It is a simpler way to operate than connecting computer and restoring the stabilizer.
• Optimized algorithm in flight control offers better experience for users and more flexible control in flight.
• 32-bit high-performance ARM MCU, 6-axis sensor chipset
• Original attitude stabilization algorithm and control algorithm
• Support normal wing, fly wing, and V-tail airplanes
• Support mode switch via MODE channel, can switch between different modes
• Four flight modes: Gyro Off Mode, Normal Mode, Aerobatic Mode, and Auto-balance (Safe) Mode
• Set the programmable items (aileron/roll/rudder gain, level offset, flight mode, etc.) via 3-in-1 program card
• Support DSM, S.BUS and PWM receivers
• Mini dimension, supporting different mounting directions (face up, down, left, and right)
• You can switch to Auto-balance (Safe) Mode when the aircraft flying unstable or you cannot control very well

Spec Check:

• Main Controller: 32-bit MCU
• Sensor: 6-axis gyro
• Gyro Scale Range: -2000dps ~ +2000dps
• Accelerometer Scale Range: -4g ~ +4g
• Input Signal: PWM, Futaba S.BUS, DSM
• Input Channel: 6 (four for PWM, one for DSM, one for S.BUS)
• Output Signal: PWM (71.4Hz)
• Output Channel: up to 6
• Input Voltage: 4.8V ~ 7.4V
• Operating Temp: -20? ~ 70?
• Size: 36.5mm*29.4mm*12.6mm
• Weight: 10g
