Dynam Detrum Msr66A 6Ch 2.4G Mini Receiver with Lstone Stabilizer for Dynam P51 Mustang 1200

DYNAM DETRUM MSR66A 6CH 2.4G MINI RECEIVER w/LSTONE STABILZER

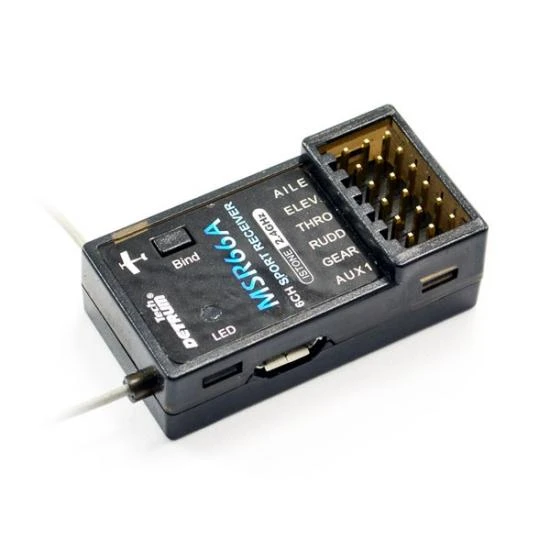

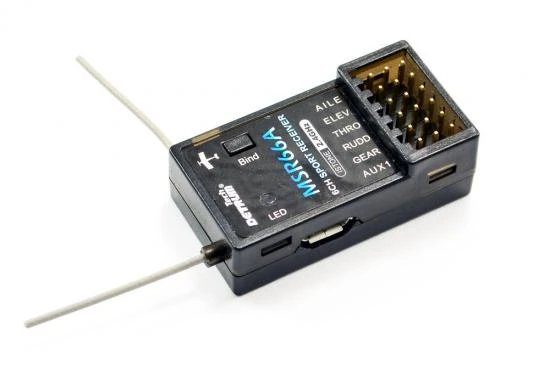

The MSR66A is a mini 6-channel 2.4GHz receiver integrated with 6-axis gyro and suitable for normal wing, fly-wing, and V-tail airplanes. It provides four different flight modes: Gyro off, Normal, Aerobatic, and Auto-Recovery (Auto Balance) and can be programmable from the matched transmitter.

Dynam MSR66A Receiver Features:

• 32-bit high-performance ARM core processor, 6-axis MEMS gyro chipset.
• The size of MSR66A is super small (37*20mm), it is more suitable for small-scale aircraft which can fly in the park.
• Original airplane attitude stabilization algorithm and control algorithm. Support normal wing, fly wing, V-tail airplanes, and 3D planes.
• Four flight modes: Gyro off, Normal, Aerobatic, and Auto-Recovery (Auto Balance). You can switch between different modes by the toggle switch.
• Set the gain and other programmable items with matched transmitter or program card.
• MSR66A adopts 2.4GHz direct sequence spread spectrum (DSSS) and multiple frequency-hopping (FHSS) technologies, having high receiving sensitivity and strong anti-interference capability.
• By using diversity antenna, combined with the signal detection and switching algorithm, the receiving signal is stable and reliable.
• Once the binding is made, the ID code is stored in the receiver and no further binding is necessary after restarting the receiver.
• If the aircraft flies out of the remote control range and cannot receive a valid RF signal from the transmitter, SR86A’s outputs can be driven to their preset failsafe positions.
• Support 6-channel PWM

Spec Check:

• Dimension: 37*20*13mm
• Weight: 7.0g
• Frequency: 2.4GHz
• Communication Distance: >1.1Km
• Power Supply: 3.6V~16V
• Output Signal: 6-channel PWM
